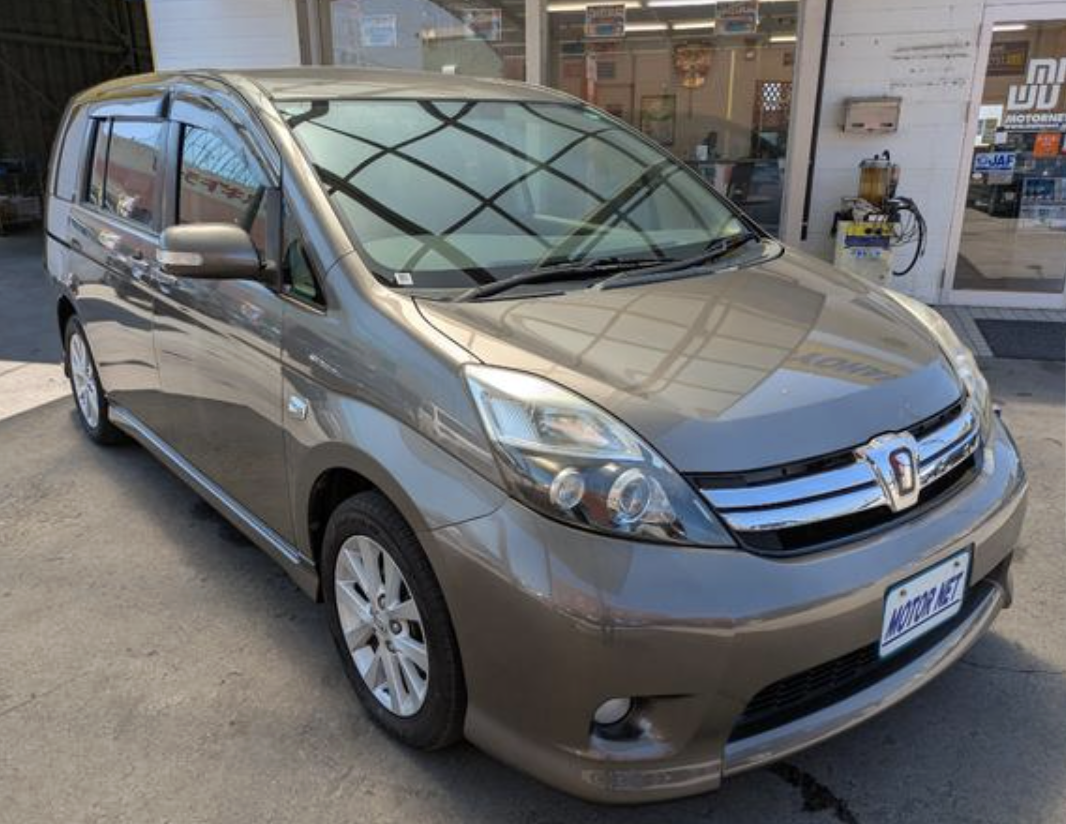

Isis PLATANA 1.8L

R99 999

The Toyota Isis is a medium-class 5-number minivan featuring a sliding door on the passenger side and a unique panoramic door with a large opening integrated into the center pillar.

🚗 Vehicle Specifications

Body Type	Minivan / One-box
Number of Doors	5 doors
Seating Capacity	7 passengers
Model Code	DBA-ZGM15W
Overall Dimensions (L × W × H)	4640 × 1710 × 1670 mm
Wheelbase	2785 mm
Tread (Front / Rear)	1480 mm / 1475 mm
Interior Dimensions (L × W × H)	2705 × 1470 × 1315 mm
Vehicle Weight	1520 kg

*For vehicles released after April 2004, prices include consumption tax (including local consumption tax).

⚙️ Engine & Performance

Engine Type	2ZR-FAE
Maximum Output	133 PS (98 kW) / 6400 rpm
Maximum Torque	16.7 kg·m (164 N·m) / 4400 rpm
Type	Inline 4-cylinder DOHC
Total Displacement	1797 cc
Bore × Stroke	80.5 mm × 88.3 mm
Compression Ratio	10.0
Turbocharger	None
Fuel Supply System	Electronic Fuel Injection (EFI)
Fuel Tank Capacity	60 liters
Fuel Type	Regular Unleaded Gasoline

🌱 Fuel Economy (Environmental Performance)

WLTC Mode	— km/L
JC08 Mode	— km/L
10·15 Mode	13.6 km/L

🛞 Chassis / Suspension / Brakes

Steering System	Rack & Pinion with Power Assist
Front Suspension	Strut-type Coil Spring (with Stabilizer)
Rear Suspension	Torsion Beam-type Coil Spring (with Stabilizer)
Front Brakes	Ventilated Disc
Rear Brakes	Disc
Tire Size (Front / Rear)	195/65R15
Minimum Turning Radius	5.5 meters

⚙️ Drivetrain

Drive System	Full-time 4WD
Transmission	CVT (Continuously Variable Transmission)
LSD	—
Gear Ratio (CVT)	2.386 – 0.411
Final Drive Ratio (Rear)	2.505
Final Reduction Ratio	5.698
